How to create a dashboard

This guide shows you how to configure and call a Dashboard using either pydantic models, Python dictionaries, YAML, or JSON.

To create a dashboard:

  1. Choose one of the possible configuration syntaxes
  2. Create your pages, see our guide on Pages
  3. (optional) Customize your navigation, see our guide on Navigation
  4. (optional) Set a title for your dashboard
  5. (optional) Set a description for your dashboard to add a tooltip and set meta tags
  6. (optional) Choose a theme, see our guide on Themes
  7. Add your dashboard to the build call of Vizro

Use dashboard configuration options

Dashboard Configuration Syntaxes

import vizro.plotly.express as px
from vizro import Vizro
import vizro.models as vm

df = px.data.iris()

page = vm.Page(
    title="My first dashboard",
    components=[
        vm.Graph(figure=px.scatter(df, x="sepal_length", y="petal_width", color="species")),
        vm.Graph(figure=px.histogram(df, x="sepal_width", color="species"))],
    controls=[
        vm.Filter(column="species"),
    ],
)

dashboard = vm.Dashboard(pages=[page])
Vizro().build(dashboard).run()

Run and edit this code in Py.Cafe

import vizro.plotly.express as px
from vizro import Vizro

df = px.data.iris()

page = {
    "title": "My first dashboard",
    "components": [
        {
            "type": "graph",
            "figure": px.scatter(
                df,
                x="sepal_length",
                y="petal_width",
                color="species",
            ),
        },
        {
            "type": "graph",
            "figure": px.histogram(
                df,
                x="sepal_width",
                color="species"
            ),
        },
    ],
    "controls": [
        {
            "type": "filter",
            "column": "species",
        },
    ],
}

dashboard = {"pages": [page]}
Vizro().build(dashboard).run()

# Still requires a .py to add data to the data manager and parse YAML configuration
# See yaml_version example
pages:
  - components:
      - figure:
          _target_: scatter
          data_frame: iris
          x: sepal_length
          y: petal_width
          color: species
        type: graph
      - figure:
          _target_: histogram
          data_frame: iris
          x: sepal_width
          color: species
        type: graph
    controls:
      - column: species
        type: filter
    title: My first dashboard

{
  "pages": [
    {
      "components": [
        {
          "figure": {
            "_target_": "scatter",
            "color": "species",
            "data_frame": "iris",
            "x": "sepal_length",
            "y": "petal_width"
          },
          "type": "graph"
        },
        {
          "figure": {
            "_target_": "histogram",
            "color": "species",
            "data_frame": "iris",
            "x": "sepal_width"
          },
          "type": "graph"
        }
      ],
      "controls": [
        {
          "column": "species",
          "type": "filter"
        }
      ],
      "title": "My first dashboard"
    }
  ]
}

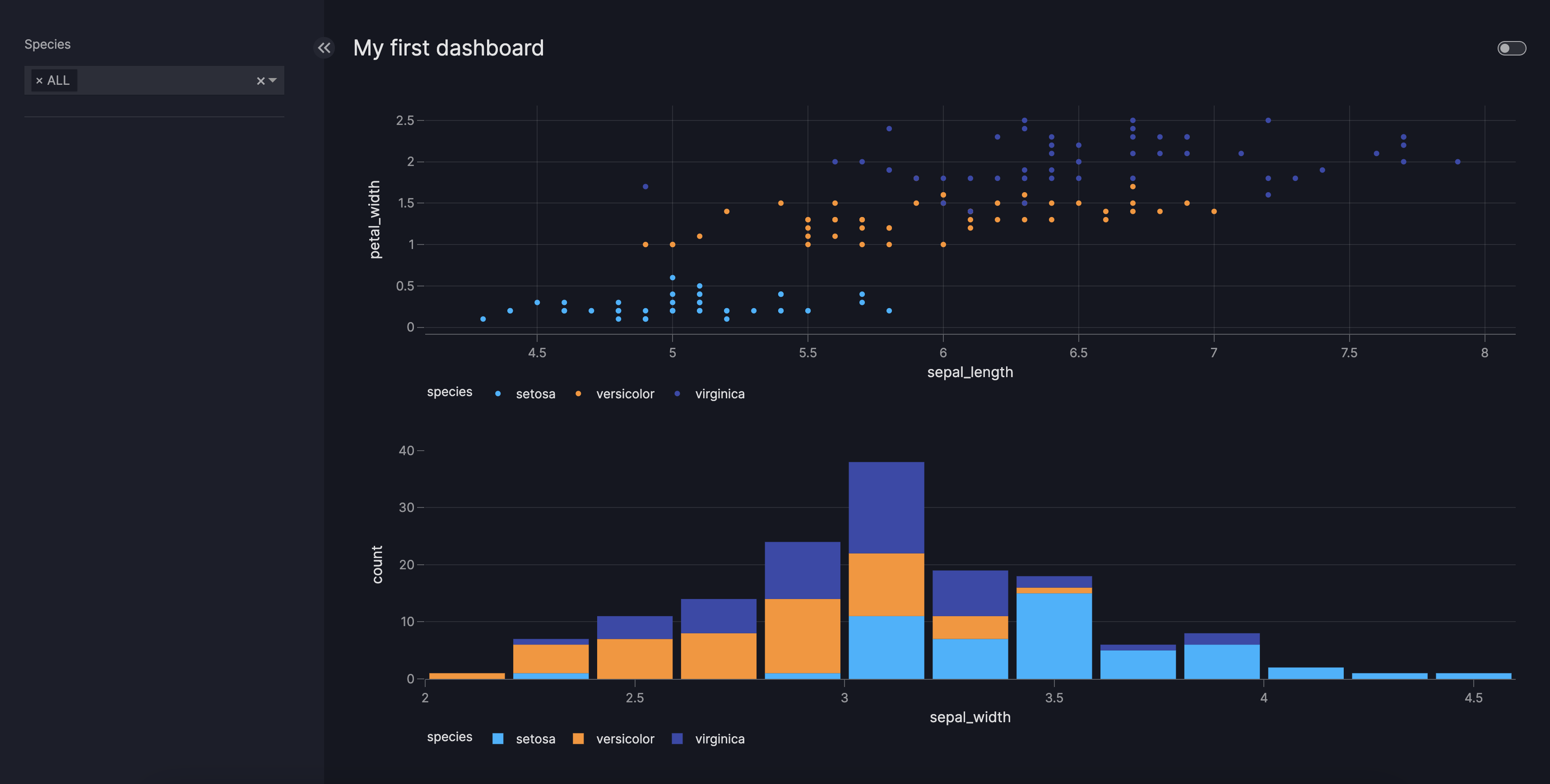

Dashboard

Extra .py files for yaml and json required

Note that in the yaml and json example an extra .py is required to register the data and parse the yaml/json configuration.

from pathlib import Path

import yaml

import vizro.plotly.express as px
from vizro import Vizro
from vizro.managers import data_manager
from vizro.models import Dashboard

data_manager["iris"] = px.data.iris()
dashboard = yaml.safe_load(Path("dashboard.yaml").read_text(encoding="utf-8"))
dashboard = Dashboard(**dashboard)

Vizro().build(dashboard).run()

import json
from pathlib import Path

import vizro.plotly.express as px
from vizro import Vizro
from vizro.managers import data_manager
from vizro.models import Dashboard

data_manager["iris"] = px.data.iris()
dashboard = json.loads(Path("dashboard.json").read_text(encoding="utf-8"))
dashboard = Dashboard(**dashboard)

Vizro().build(dashboard).run()

After running the dashboard, you can access the dashboard via localhost:8050.

Add a dashboard title

If supplied, the title of the Dashboard displays a heading at the top of every page.

Vizro automatically incorporate the dashboard logo in the top-left corner of each page if an image named logo.<extension> is present within the assets folder.

Dashboard with logo

Add a dashboard tooltip

The description argument enables you to add helpful context to your dashboard by displaying an info icon next to its title. Hovering over the icon shows a tooltip with your provided text.

You can provide Markdown text as a string to use the default info icon or a Tooltip model to use any icon from the Google Material Icons library.

Dashboard with tooltip

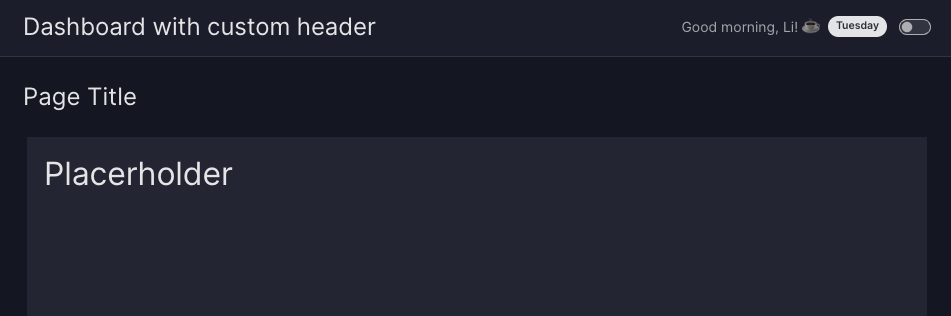

Customize the header

You can now append custom content to the dashboard header using the custom_header static method of the Dashboard. This enables you to inject any Dash component(s) into a dedicated area of the header - common examples include text, badges, or buttons.

Custom header area

To append items to the custom header area, subclass the Dashboard and override the custom_header static method to return your desired Dash component(s):

  • The returned value can be a single Dash component or a list of components.
  • The custom header area is styled as a flex row with an 8px gap.
  • The custom content will appear in the header, to the left of the theme switch.

Customize dashboard header

from vizro import Vizro
import vizro.models as vm
from typing import Literal
from dash import html
import dash_bootstrap_components as dbc


class CustomDashboard(vm.Dashboard):
    type: Literal["custom_dashboard"] = "custom_dashboard"

    @staticmethod
    def custom_header():
        return [html.Div("Good morning, Li! ☕"), dbc.Badge("Tuesday", color="primary")]


page = vm.Page(title="Page Title", components=[vm.Card(text="""# Placerholder""")])
dashboard = CustomDashboard(pages=[page], title="Dashboard with custom header")
Vizro().build(dashboard).run()

Run and edit this code in Py.Cafe

Custom sashboards are currently only possible via Python configuration.

CustomHeader

Meta tags for social media

Vizro automatically adds meta tags to display a preview card when your app is shared on social media and chat clients. To see an example, try sharing an example from the Vizro examples gallery.

The preview includes:

Browser title

The website icon, Dashboard title (if supplied) and Page title are displayed in the browser's title bar. For example, if your Dashboard title is "Vizro Demo" and the Page title is "Homepage", then the title in the browser tab will be "Vizro Demo: Homepage".
