How to create custom actions

This guide demonstrates the usage of custom actions, an idea that shares similarities with, but is not identical to callbacks in Dash. If you want to use the Action model to perform functions that are not available in the built-in action functions, you can create your own custom action. Like other actions, custom actions could also be added as an element inside the actions chain, and it can be triggered with one of many dashboard components.

Simple custom action

Custom actions enable you to implement your own action function. Simply do the following:

define a function
decorate it with the @capture("action") decorator
add it as a function argument inside the Action model

The following example shows how to create a custom action that postpones execution of the next action in the chain for t seconds.

Simple custom action

app.pyapp.yaml

import vizro.models as vm
import vizro.plotly.express as px
from vizro import Vizro
from vizro.actions import export_data
from vizro.models.types import capture
from time import sleep


@capture("action")  # (1)!
def my_custom_action(t: int):
    sleep(t)


df = px.data.iris()

page = vm.Page(
    title="Simple custom action",
    components=[
        vm.Graph(
            figure=px.scatter(df, x="sepal_length", y="petal_width", color="species")
        ),
        vm.Button(
            text="Export data",
            actions=[
                vm.Action(function=export_data()),
                vm.Action(function=my_custom_action(t=2)),
                vm.Action(function=export_data(file_format="xlsx")),
            ]
        )
    ]
)

dashboard = vm.Dashboard(pages=[page])
Vizro().build(dashboard).run()

Run and edit this code in Py.Cafe

We define a custom action my_custom_action using the @capture("action") decorator. This action takes an integer t and pauses execution for t seconds. It's used here to delay the subsequent export_data action in the chain.

Custom actions are currently only possible via Python configuration.

Interact with inputs and outputs

When a custom action needs to interact with the dashboard, it is possible to define inputs and outputs for the custom action.

inputs represents dashboard component properties whose values are passed to the custom action function as arguments. It is a list of strings in the format "<component_id>.<property>" (for example, "my_selector.value").
outputs represents dashboard component properties corresponding to the custom action function return value(s). Similar to inputs, it is a list of strings in the format "<component_id>.<property>" (for example, "my_card.children").

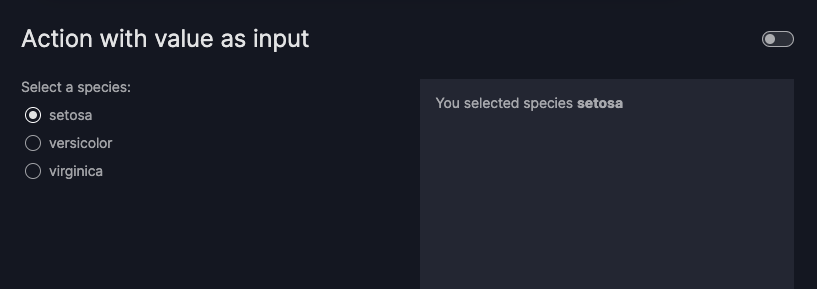

Example of `value` as input

The following example shows a custom action that takes the value of the vm.RadioItem and returns it inside a Card component.

Display value in Card

app.pyapp.yamlResult

import vizro.models as vm
import vizro.plotly.express as px
from vizro import Vizro
from vizro.models.types import capture

df = px.data.iris()
vm.Page.add_type("components", vm.RadioItems)

@capture("action")  # (1)!
def update_card_text(species):
    return f"You selected species **{species}**"

page = vm.Page(
    title="Action with value as input",
    layout=vm.Grid(grid=[[0, 1]]),
    components=[
        vm.RadioItems(
            id="my_selector",
            title="Select a species:",
            options=df["species"].unique().tolist(),
            actions=[
                vm.Action(function=update_card_text(), inputs=["my_selector.value"], outputs=["my_card.children"])
            ],
        ),
        vm.Card(text="Placeholder text", id="my_card"),
    ],
)

dashboard = vm.Dashboard(pages=[page])
Vizro().build(dashboard).run()

Run and edit this code in Py.Cafe

We define a custom action update_card_text using the @capture("action") decorator. This action takes the selected species as input and returns a formatted string to be displayed in a Card.

Custom actions are currently only possible via Python configuration.

Example of `clickData` as input

The following example shows how to create a custom action that shows the clickData of a chart in a Card component. For further information on the structure and content of the clickData property, refer to the Dash documentation on interactive visualizations.

Display clickData in Card

app.pyapp.yamlResult

import vizro.models as vm
import vizro.plotly.express as px
from vizro import Vizro
from vizro.models.types import capture

df = px.data.iris()

@capture("action")  # (1)!
def my_custom_action(show_species: bool, points_data: dict):  # (2)!
    clicked_point = points_data["points"][0]
    x, y = clicked_point["x"], clicked_point["y"]
    text = f"Clicked point has sepal length {x}, petal width {y}"

    if show_species:
        species = clicked_point["customdata"][0]
        text += f" and species {species}"
    return text

page = vm.Page(
    title="Action with clickData as input",
    components=[
        vm.Graph(
            id="scatter_chart",
            figure=px.scatter(df, x="sepal_length", y="petal_width", color="species", custom_data=["species"]),
            actions=[
                vm.Action(
                    function=my_custom_action(show_species=True), # (3)!
                    inputs=["scatter_chart.clickData"], # (4)!
                    outputs=["my_card.children"],
                ),
            ],
        ),
        vm.Card(id="my_card", text="Click on a point on the above graph."),
    ],
)

dashboard = vm.Dashboard(pages=[page])
Vizro().build(dashboard).run()

Run and edit this code in Py.Cafe

We define a custom action my_custom_action using the @capture("action") decorator.
This action takes a boolean show_species and a dictionary points_data. It uses these to construct a descriptive string about a clicked point on a chart. The names show_species and points_data are arbitrary and do not need to match on to the names of inputs in any particular way.
When the Action is defined within the Graph.actions, the show_species argument of my_custom_action is statically bound to True.
The points_data argument of my_custom_action receives its value dynamically at runtime. This happens because the inputs parameter of vm.Action is set to ["scatter_chart.clickData"]. When a user clicks on the scatter_chart, the chart's clickData property (which contains details about the click event) is automatically passed as the points_data argument to my_custom_action.

Custom actions are currently only possible via Python configuration.

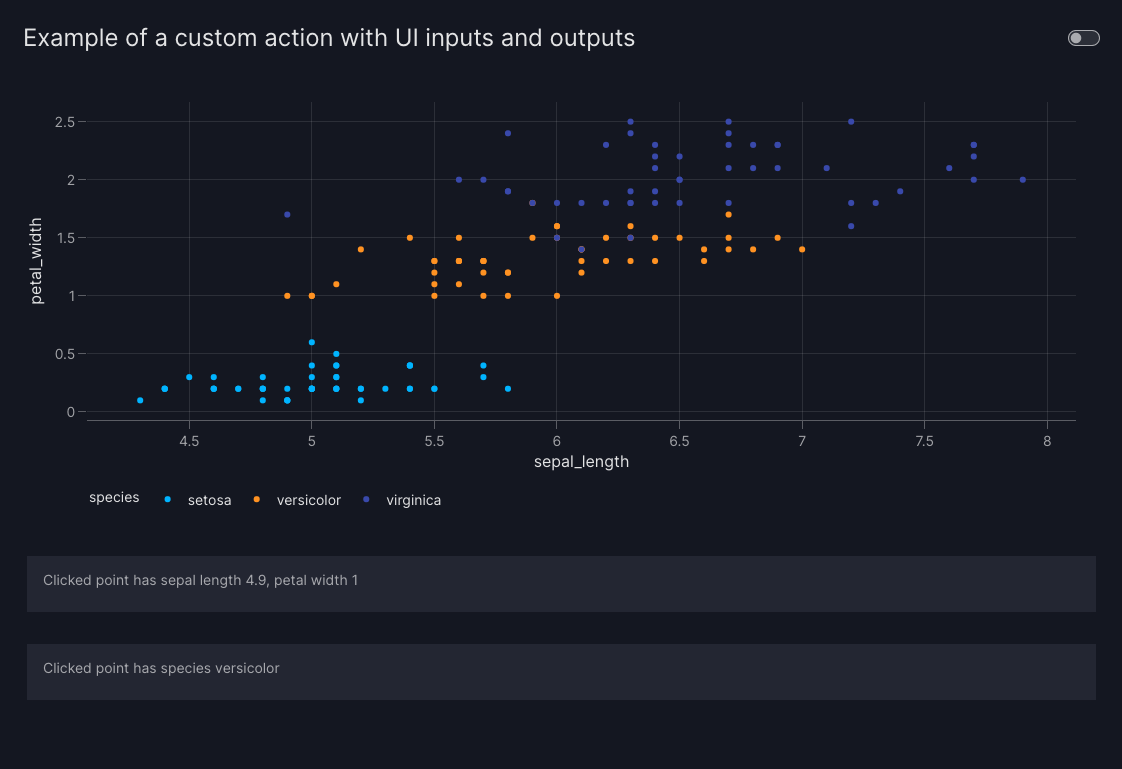

Multiple return values

The return value of the custom action function is propagated to the dashboard components that are defined in the outputs argument of the Action model. If there is a single output defined then the function return value is directly assigned to the component property. If there are multiple outputs defined then the return value is iterated through and each part is assigned to each component property given in outputs in turn. This behavior is identical to Python's flexibility in managing multiple return values.

Multiple return values

app.pyapp.yamlResult

import vizro.models as vm
import vizro.plotly.express as px
from vizro import Vizro
from vizro.models.types import capture


@capture("action")  # (1)!
def my_custom_action(points_data: dict):
    clicked_point = points_data["points"][0]
    x, y = clicked_point["x"], clicked_point["y"]
    species = clicked_point["customdata"][0]
    card_1_text = f"Clicked point has sepal length {x}, petal width {y}"
    card_2_text = f"Clicked point has species {species}"
    return card_1_text, card_2_text


df = px.data.iris()

page = vm.Page(
    title="Example of a custom action with UI inputs and outputs",
    layout=vm.Flex(),  # (2)!
    components=[
        vm.Graph(
            id="scatter_chart",
            figure=px.scatter(df, x="sepal_length", y="petal_width", color="species", custom_data=["species"]),
            actions=[
                vm.Action(
                    function=my_custom_action(),
                    inputs=["scatter_chart.clickData"],
                    outputs=["my_card_1.children", "my_card_2.children"], # (3)!
                ),
            ],
        ),
        vm.Card(id="my_card_1", text="Click on a point on the above graph."),
        vm.Card(id="my_card_2", text="Click on a point on the above graph."),
    ]
)

dashboard = vm.Dashboard(pages=[page])
Vizro().build(dashboard).run()

Run and edit this code in Py.Cafe

We define a custom action my_custom_action using the @capture("action") decorator. This action takes points_data (dynamically populated from scatter_chart.clickData) as input, extracts details about the clicked point, and returns two strings, card_1_text and card_2_text.
A Flex layout is used for the page to ensure the Graph and Card components are sized appropriately based on their content rather than being distributed evenly.
The two strings returned by my_custom_action are assigned in the same order here.

Custom actions are currently only possible via Python configuration.

Warning

Note that users of this package are responsible for the content of any custom action function that they write. Take care to avoid leaking any sensitive information or exposing to any security threat during implementation. You should always treat the content of user input as untrusted.
