How to use containers

This guide shows you how to use containers to group your components into sections and subsections within the page.

A Container complements a Page, and both models share nearly identical arguments. While Page.layout provides a method for structuring the overall page layout, a Container offers more detailed control within a particular section of the page. The Container is based on the underlying Dash component dbc.Container.

Unlike Page, the Container model offers additional visual customization options:

variant: Enables you to select a visual style for the container, making it stand out from the rest of the page content.
collapsed: Enables collapsible behavior. You can define whether the container's contents are initially shown or hidden.

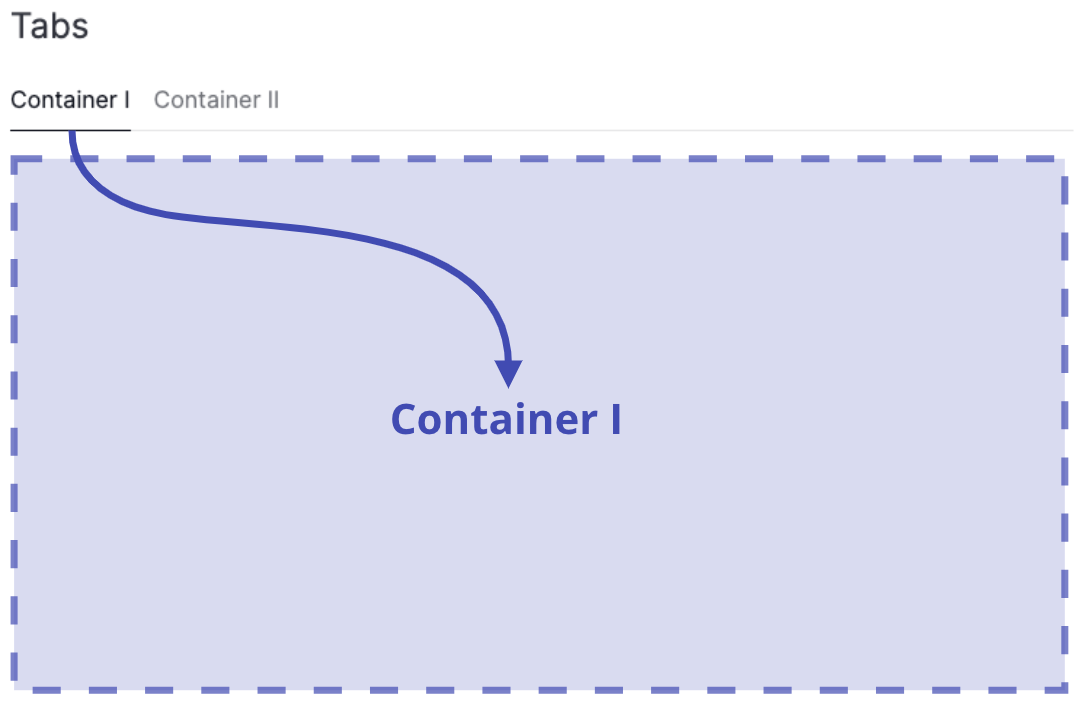

Displaying multiple containers inside Tabs

An alternative way to display multiple containers on one page is to place them inside Tabs.

Tabs organize and separate groups of related content in a dashboard, letting users switch between different sections or views. They are a way of putting multiple containers into the same screen space, and letting the user switch between them.

tabs

When to use containers

In general, any arbitrarily granular layout can already be achieved by using Page.layout alone, which is our recommended approach if you want to arrange components on a page with consistent row and/or column spacing.

Both Page.layout and Container.layout now accept either a Grid (default) or a Flex layout model, giving you full flexibility when arranging components.

Page.layout defines the overall layout of the page using either Grid or Flex.
Container.layout allows you to insert a nested Grid or Flex layout within the page layout, offering more granular control by breaking the page into independently arranged sublayouts.

Here are a few cases where you might want to use a Container instead of Page.layout:

Split up your sections into subsections to organize components together
Add a title to your section
Different row and column spacing between sections
Apply a background color or borders to visually distinguish your content
Make your content collapsible
Apply controls to selected sections

Basic containers

To add a Container to your page, do the following:

Insert the Container into the components argument of the Page
Configure your components, read the overview page for various options
(optional) Set a title for your Container
(optional) Configure your layout, see the guide on layouts
(optional) Configure container specific controls

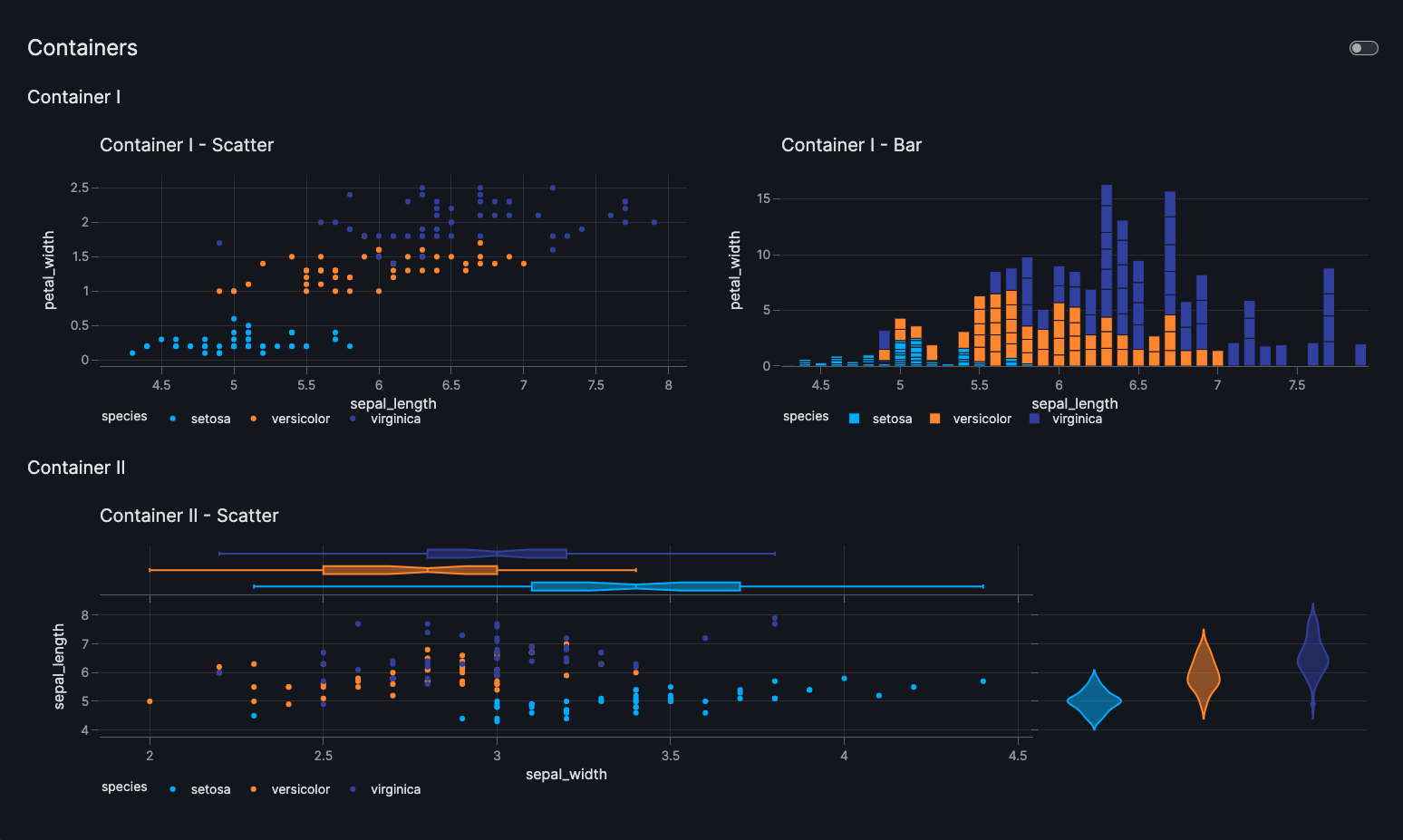

Container

app.pyapp.yamlResult

import vizro.models as vm
import vizro.plotly.express as px
from vizro import Vizro

iris = px.data.iris()

page = vm.Page(
    title="Containers",
    components=[  # (1)!
        vm.Container(
            title="Container I",
            layout=vm.Grid(grid=[[0, 1]]),  # (2)!
            components=[
                vm.Graph(
                    figure=px.scatter(
                        iris,
                        x="sepal_length",
                        y="petal_width",
                        color="species",
                        title="Container I - Scatter"
                    )
                ),
                vm.Graph(
                    figure=px.bar(
                        iris,
                        x="sepal_length",
                        y="sepal_width",
                        color="species",
                        title="Container I - Bar"
                    )
                ),
            ],
        ),
        vm.Container(
            title="Container II",
            components=[
                vm.Graph(
                    figure=px.scatter(
                        iris,
                        x="sepal_width",
                        y="sepal_length",
                        color="species",
                        marginal_y="violin",
                        marginal_x="box",
                        title="Container II - Scatter",
                    )
                ),
            ],
        ),
    ],
)

dashboard = vm.Dashboard(pages=[page])
Vizro().build(dashboard).run()

Run and edit this code in Py.Cafe

Note that the Page.layout argument is not specified here and will therefore defaults to [[0], [1]], meaning the containers will be vertically stacked down the page in one column.
Horizontally stack the components side-by-side inside this Container in one row.

# Still requires a .py to add data to the data manager and parse YAML configuration
# See yaml_version example
pages:
  - components:
      - components:
          - figure:
              _target_: scatter
              data_frame: iris
              x: sepal_length
              y: petal_width
              color: species
              title: Container I - Scatter
            type: graph
          - figure:
              _target_: bar
              data_frame: iris
              x: sepal_length
              y: petal_width
              color: species
              title: Container I - Bar
            type: graph
        layout:
          grid: [[0, 1]]
          type: grid
        type: container
        title: Container I
      - components:
          - figure:
              _target_: scatter
              data_frame: iris
              x: sepal_width
              y: sepal_length
              color: species
              marginal_y: violin
              marginal_x: box
              title: Container II - Scatter
            type: graph
        type: container
        title: Container II
    title: Containers

Note that an almost identical layout can also be achieved using solely the Page.layout by configuring the Page.layout as vm.Grid(grid = [[0, 1], [2, 2]]).

Nested containers

Containers can be nested, providing a hierarchical structure for organizing components. This nesting capability enables users to create more complex layouts and manage related components at any level of granularity.

To create nested containers, add a Container to the components argument of another Container.

Example

vm.Container(
    title="Parent Container",
    components=[
        vm.Container(
            title="Child Container",
            components=[vm.Button()],
        )
    ],
)

Styled containers

To make the Container stand out as a distinct section in your dashboard, you can select from the predefined styles available in its variant argument. This can be set to "plain" (the default), "filled" or "outlined".

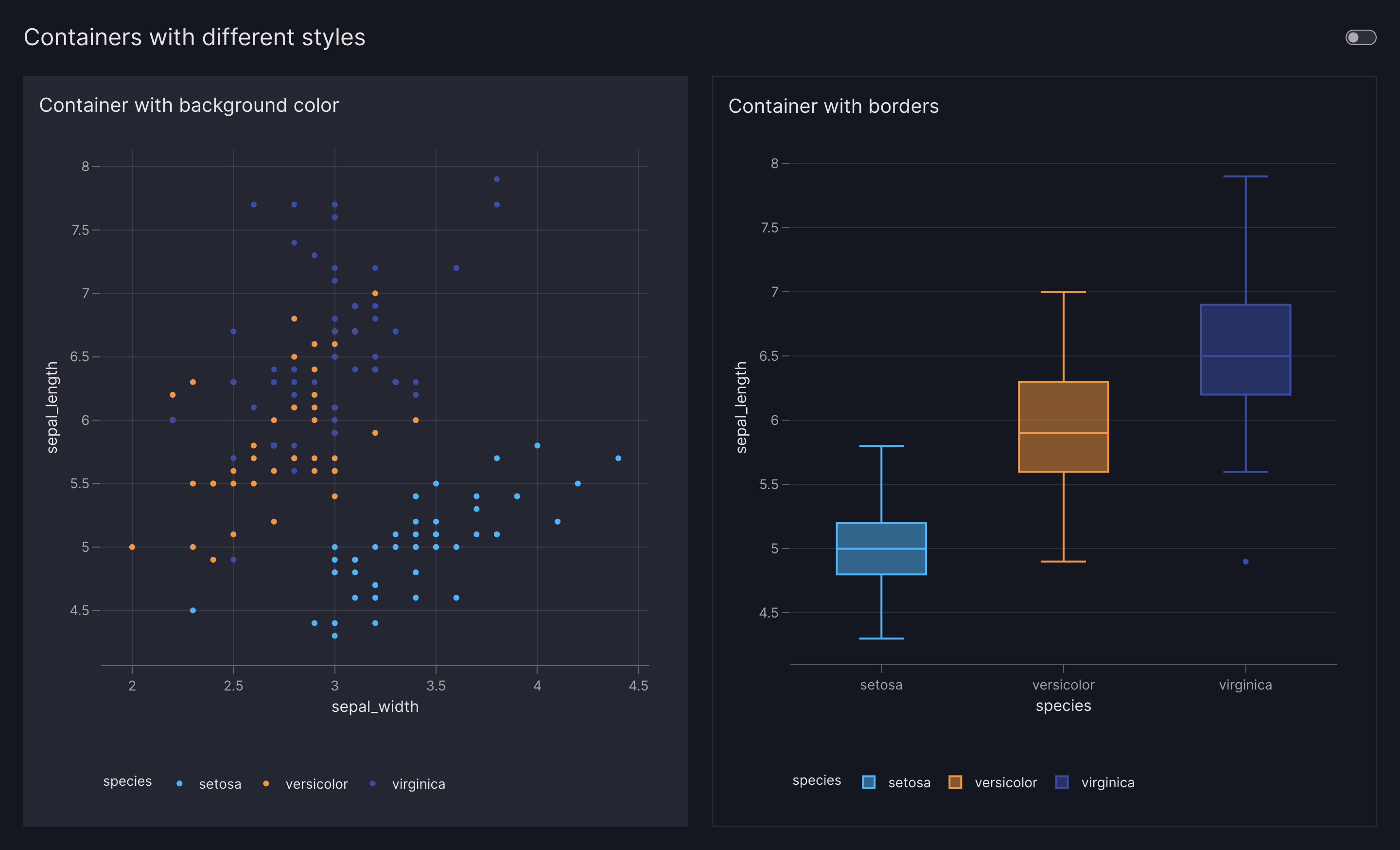

Container with different styles

app.pyapp.yamlResult

import vizro.models as vm
import vizro.plotly.express as px
from vizro import Vizro

iris = px.data.iris()

page = vm.Page(
    title="Containers with different styles",
    layout=vm.Grid(grid=[[0, 1]]),
    components=[
        vm.Container(
            title="Container with background color",
            components=[vm.Graph(figure=px.scatter(iris, x="sepal_width", y="sepal_length", color="species"))],
            variant="filled",
        ),
        vm.Container(
            title="Container with borders",
            components=[vm.Graph(figure=px.box(iris, x="species", y="sepal_length", color="species"))],
            variant="outlined",
        )
    ],
)

dashboard = vm.Dashboard(pages=[page])
Vizro().build(dashboard).run()

Run and edit this code in Py.Cafe

# Still requires a .py to add data to the data manager and parse YAML configuration
# See yaml_version example
pages:
  - title: Containers with different styles
    layout:
      grid: [[0, 1]]
      type: grid
    components:
      - type: container
        title: Container with background color
        components:
          - type: graph
            figure:
              _target_: scatter
              data_frame: iris
              x: sepal_width
              y: sepal_length
              color: species
        variant: filled
      - type: container
        title: Container with borders
        components:
          - type: graph
            figure:
              _target_: box
              data_frame: iris
              x: species
              y: sepal_length
              color: species
        variant: outlined

If you want to style your Container beyond the styling options available inside variant, please refer to our user guide on overwriting CSS for selected components.

Collapsible containers

To make a Container collapsible, use the collapsed argument:

Set collapsed=True to have the container start in a collapsed (hidden) state.
Set collapsed=False to have it expanded (visible) by default.

Once defined, dashboard users can toggle the container’s visibility interactively.

By default, a collapsible container is styled with variant="outlined" to make its border visible.

Collapsible containers are supported in both Grid and Flex layouts. However, we recommend using them within a Flex layout for optimal behavior, as Flex is better suited to dynamic sizing and more efficient use of space when content is shown or hidden.

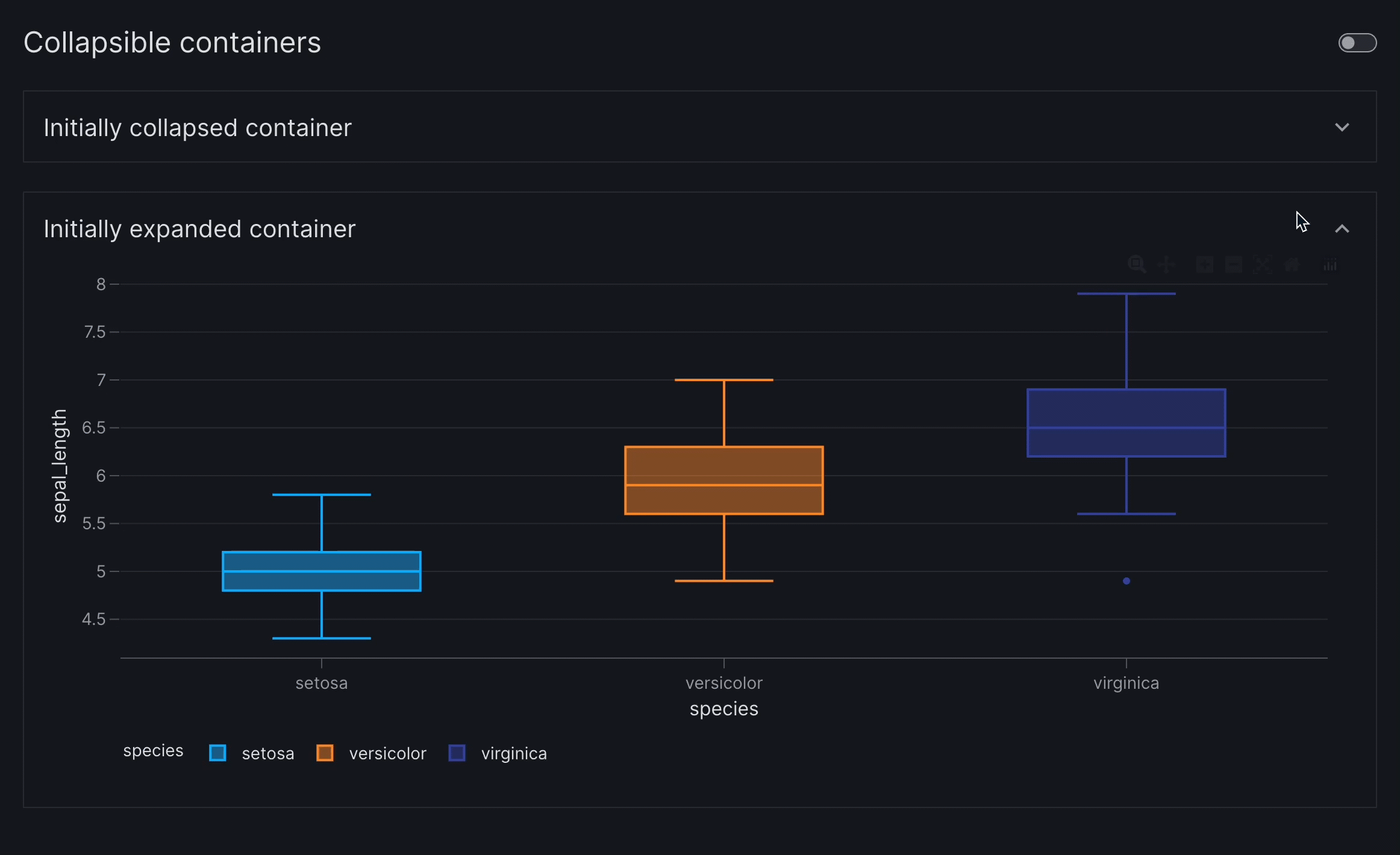

Collapsible container inside Flex

app.pyapp.yamlResult

import vizro.models as vm
import vizro.plotly.express as px
from vizro import Vizro

iris = px.data.iris()

page = vm.Page(
    title="Collapsible containers",
    layout=vm.Flex(),  # (1)!
    components=[
        vm.Container(
            title="Initially collapsed container",
            components=[vm.Graph(figure=px.scatter(iris, x="sepal_width", y="sepal_length", color="species"))],
            collapsed=True,
        ),
        vm.Container(
            title="Initially expanded container",
            components=[vm.Graph(figure=px.box(iris, x="species", y="sepal_length", color="species"))],
            collapsed=False,
        )
    ],
)

dashboard = vm.Dashboard(pages=[page])
Vizro().build(dashboard).run()

Run and edit this code in Py.Cafe

We use a Flex layout to make sure the Container only occupy as much space as they need, regardless of their collapsed state.

# Still requires a .py to add data to the data manager and parse YAML configuration
# See yaml_version example
pages:
  - title: Collapsible containers
    layout:
      type: flex
    components:
      - type: container
        title: Initially collapsed container
        components:
          - type: graph
            figure:
              _target_: scatter
              data_frame: iris
              x: sepal_width
              y: sepal_length
              color: species
        collapsed: true
      - type: container
        title: Initially expanded container
        components:
          - type: graph
            figure:
              _target_: box
              data_frame: iris
              x: species
              y: sepal_length
              color: species
        collapsed: false

Collapsible containers can be used in Grid layout as well.

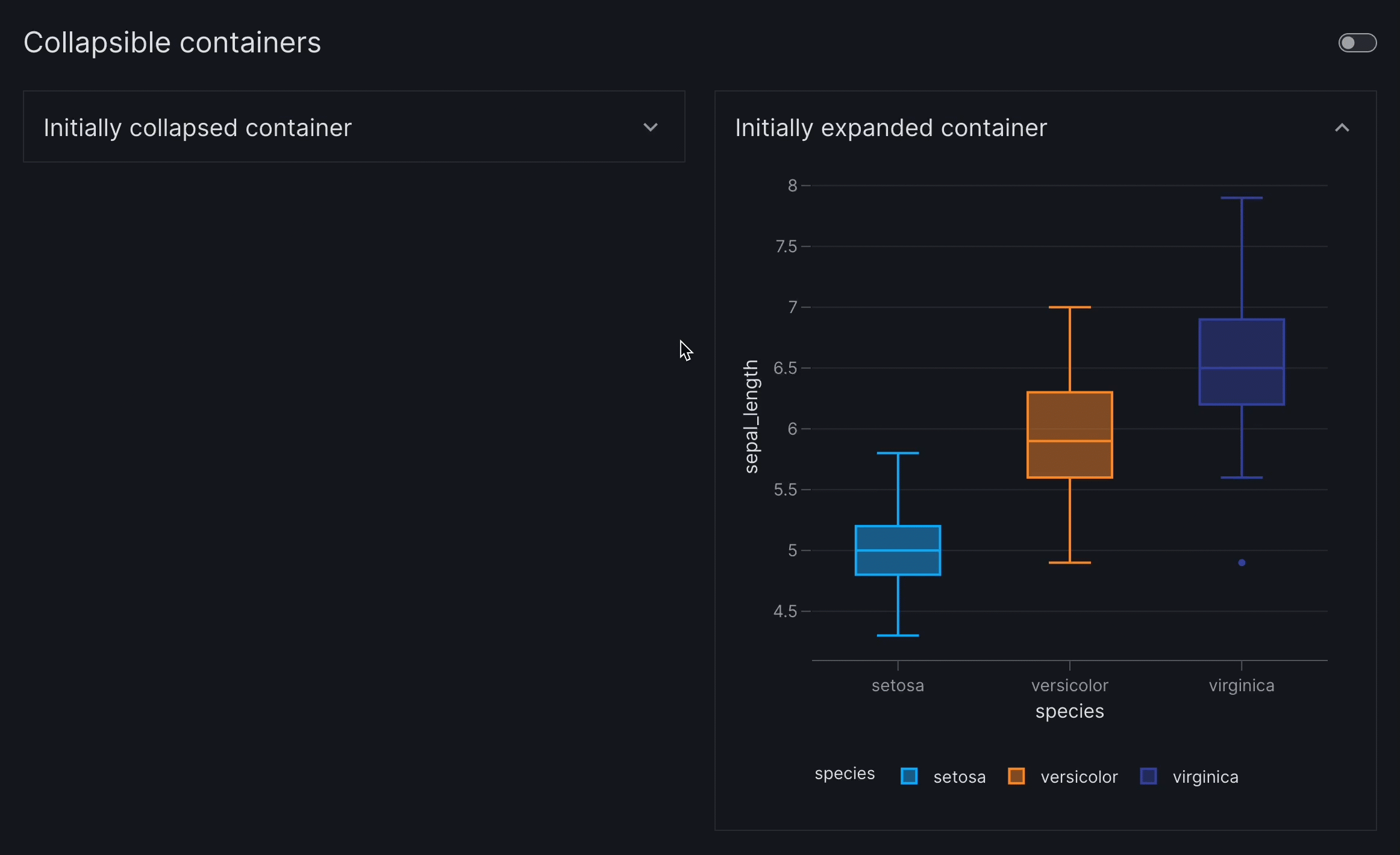

Collapsible container inside Grid

app.pyapp.yamlResult

import vizro.models as vm
import vizro.plotly.express as px
from vizro import Vizro

iris = px.data.iris()

page = vm.Page(
    title="Collapsible containers",
    layout=vm.Grid(grid=[[0, 1]]),
    components=[
        vm.Container(
            title="Initially collapsed container",
            components=[vm.Graph(figure=px.scatter(iris, x="sepal_width", y="sepal_length", color="species"))],
            collapsed=True,
        ),
        vm.Container(
            title="Initially expanded container",
            components=[vm.Graph(figure=px.box(iris, x="species", y="sepal_length", color="species"))],
            collapsed=False,
        )
    ],
)

dashboard = vm.Dashboard(pages=[page])
Vizro().build(dashboard).run()

Run and edit this code in Py.Cafe

# Still requires a .py to add data to the data manager and parse YAML configuration
# See yaml_version example
pages:
  - title: Collapsible containers
    layout:
      grid: [[0, 1]]
      type: grid
    components:
      - type: container
        title: Initially collapsed container
        components:
          - type: graph
            figure:
              _target_: scatter
              data_frame: iris
              x: sepal_width
              y: sepal_length
              color: species
        collapsed: true
      - type: container
        title: Initially expanded container
        components:
          - type: graph
            figure:
              _target_: box
              data_frame: iris
              x: species
              y: sepal_length
              color: species
        collapsed: false

The description argument enables you to add helpful context to your container by displaying an info icon next to its title. Hovering over the icon shows a tooltip with your chosen text.

You can provide Markdown text as a string to use the default info icon or a Tooltip model to use any icon from the Google Material Icons library.

Container with tooltip

app.pyapp.yamlResult

import vizro.models as vm
import vizro.plotly.express as px
from vizro import Vizro

iris = px.data.iris()

page = vm.Page(
    title="Container with tooltip",
    layout=vm.Grid(grid=[[0, 1]]),
    components=[
        vm.Container(
            title="Container with tooltip",
            components=[vm.Graph(figure=px.scatter(iris, x="sepal_width", y="sepal_length", color="species"))],
            description="""
                The Iris dataset includes measurements of 150 iris flowers across three types: Setosa, Versicolor, and Virginica.

                While all samples are labeled by type, they can appear similar when looking at just some features—making it a useful dataset for exploring patterns and challenges in classification.
            """,
        ),
        vm.Container(
            title="Container title",
            components=[vm.Graph(figure=px.box(iris, x="species", y="sepal_length", color="species"))],
        )
    ],
)

dashboard = vm.Dashboard(pages=[page])
Vizro().build(dashboard).run()

Run and edit this code in Py.Cafe

# Still requires a .py to add data to the data manager and parse YAML configuration
# See yaml_version example
pages:
  - title: Container with tooltip
    layout:
      grid: [[0, 1]]
      type: grid
    components:
      - type: container
        title: Container with tooltip
        components:
          - type: graph
            figure:
              _target_: scatter
              data_frame: iris
              x: sepal_width
              y: sepal_length
              color: species
        collapsed: true
        description: |
          The Iris dataset includes measurements of 150 iris flowers across three types: Setosa, Versicolor, and Virginica.

          While all samples are labeled by type, they can appear similar when looking at just some features—making it a useful dataset for exploring patterns and challenges in classification.
      - type: container
        title: Container title
        components:
          - type: graph
            figure:
              _target_: box
              data_frame: iris
              x: species
              y: sepal_length
              color: species
        collapsed: false

Add controls to container

The Container has a controls argument, where you can define container-specific controls to group related components for better interaction. Controls can only target components inside their own container.

Here are a few cases where you might want to use controls within a Container:

displaying multiple datasets on the same page
isolating container-specific data without affecting the rest of the page
providing detailed views that don't influence page-level data

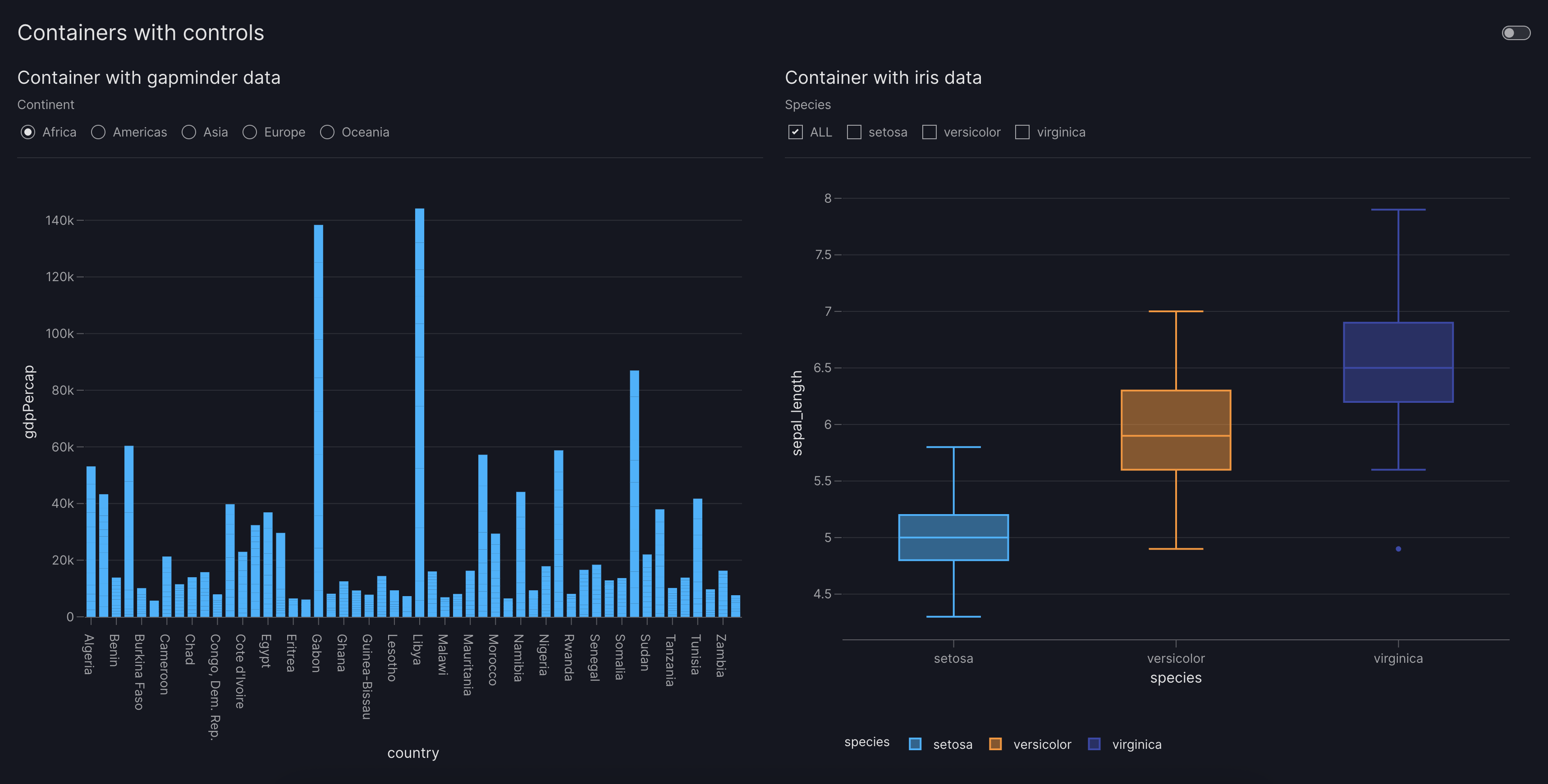

Container with controls

app.pyapp.yamlResult

import vizro.models as vm
import vizro.plotly.express as px
from vizro import Vizro

iris = px.data.iris()
gapminder = px.data.gapminder()

page = vm.Page(
    title="Containers with controls",
    layout=vm.Grid(grid=[[0, 1]]),
    components=[
        vm.Container(
            title="Container with gapminder data",
            components=[vm.Graph(id="bar_chart", figure=px.bar(gapminder, x="country", y="gdpPercap"))],
            controls=[vm.Filter(column="continent", selector=vm.RadioItems())],
        ),
        vm.Container(
            title="Container with iris data",
            components=[vm.Graph(figure=px.box(iris, x="species", y="sepal_length", color="species"))],
            controls=[vm.Filter(column="species", selector=vm.Checklist())],
        )
    ],
)

dashboard = vm.Dashboard(pages=[page])
Vizro().build(dashboard).run()

Run and edit this code in Py.Cafe

# Still requires a .py to add data to the data manager and parse YAML configuration
# See yaml_version example
pages:
  - title: Containers with controls
    layout:
      grid: [[0, 1]]
      type: grid
    components:
      - type: container
        title: Container with gapminder data
        components:
          - type: graph
            figure:
              _target_: bar
              data_frame: gapminder
              x: country
              y: gdpPercap
        controls:
          - column: continent
            selector:
              type: radioitems
            type: filter
      - type: container
        title: Container with iris data
        components:
          - type: graph
            figure:
              _target_: box
              data_frame: iris
              x: species
              y: sepal_length
              color: species
        controls:
          - column: species
            selector:
              type: checklist
            type: filter

Container styles

When you have multiple adjacent containers with controls, consider using styled containers to make the separations between sections of your page clear. Containers with controls also work with collapsible containers and inside nested containers.

The `extra` argument

The Container is based on the underlying Dash component dbc.Container. Using the extra argument you can pass extra arguments to dbc.Container in order to alter it beyond the chosen defaults.

Note

Using extra is a quick and flexible way to alter a component beyond what Vizro offers. However, it is not a part of the official Vizro schema and the underlying implementation details may change. If you want to guarantee that your apps keep running, we recommend that you pin your Vizro version.

For examples of how to use the extra argument, see an example in the documentation of Card.

How to use containers

When to use containers

Basic containers

Nested containers

Styled containers

Collapsible containers

Add a tooltip

Add controls to container

The extra argument

The `extra` argument
